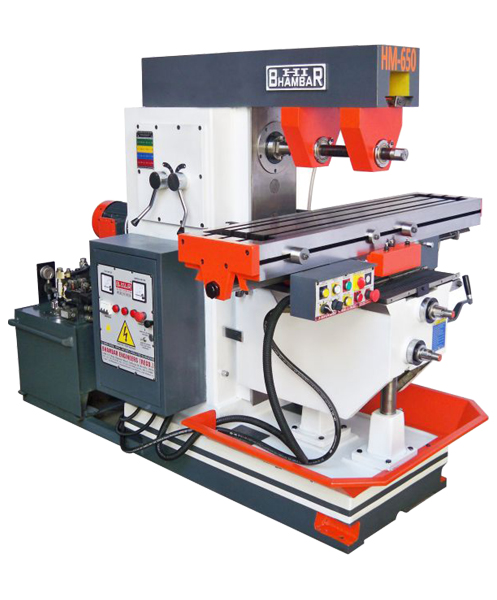

Hydraulic Feed Horizontal Milling Machines

Standard Accessories	Optional Accessories
Electrical Control Panel Arbor with Hardened Bushes	Vertical Attachment Ram Type Vertical Head Side Vertical Head Duplex Attachment Slotting Attachment Rack Cutting Attachment Universal Dividing Head Rotary Table Milling Machine Vice Machine Lamp Electric Coolant Pump

Download Brochure Make an Enquiry

Model	HM 500	HM 650
Table Size	1100X300	1300X300
T-Slots/Width/C.D.	3/17/65	3/17/65
X-Traverse (Longitudinal)	500 (Hyd.)	650 (Hyd.)
Y-Traverse (Cross Traverse)	200 (Manual)	240 (Manual)
Z-Traverse (Vertical Ttaverse)	300	350
Table Loading Capacity	200 Kgms.	350 Kgms.
Spindle Taper Standard	ISO 40	ISO 40
Spindle Speeds & Range	(45-1100 RPM's)	9 (45-1100 RPM's)
Arbor Diameter	25.40 mm/ As per req.	25.40 mm/ As per req.
Feed Range	Hydraulic Variable	Hydraulic Variable
Rapid	Quick	Quick
Milling Spindle Motor	2 HP (960 RPM's)	3 HP (960 RPM's)
Hydraulic Power Pack Motor	2 HP (1440 RPM's)	3 HP (1440 RPM's)
Coolant System, if Required	0.1 HP	0.1 HP
Approx. Weight (kgms)	1950	2250

High rigidity of structure and drives.
Convenient Design.
Separate drive for the spindle and the table movements.
Single lever control of feeds & rapid traverse.
Wide range of spindle speeds & feeds with high upper limits.
Casting is high tensile strength, graded & superior quality.
High rates of rapid table traverse while the spindle is running or at rest.
Large longitudinal & traverse movements of table.
Prolong hardened gears
All parts are interchangeable

Note:
1. All specifications are subject to change without prior notice.
2. Price are illustrative olny. Parts shown may not be part of standard equipment.
3. User have option to select the spindle speed among 9 or 12 before placing the order.
